Sirio StarDuster M-400 26.5 - 30Mhz Tunable Base Antenna

Coming Soon

Sirio StarDuster M-400 26.5 - 30Mhz Tunable Base Antenna

Name: Sirio StarDuster M-400 26.5 - 30Mhz Tunable Base Antenna
SKU: SIR-TUBA-M400
Price: 74.00 USD
Availability: InStock

Model: SIR-TUBA-M400

^{26.5 - 30 Mhz Tunable , 3000 W}

$74.00

Qty:

Notify me when in stock

Model
SIR-TUBA-M400

Description:

Product Information

Product Number: 2103201.00
Model: StarDuster M-400

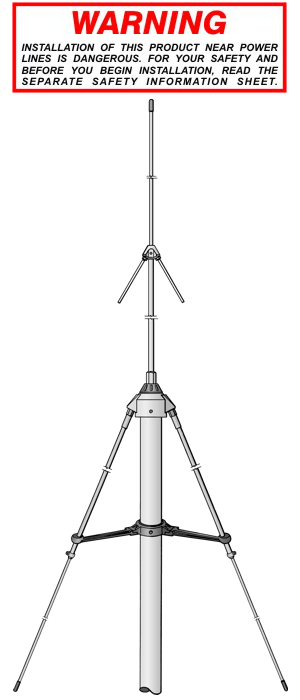

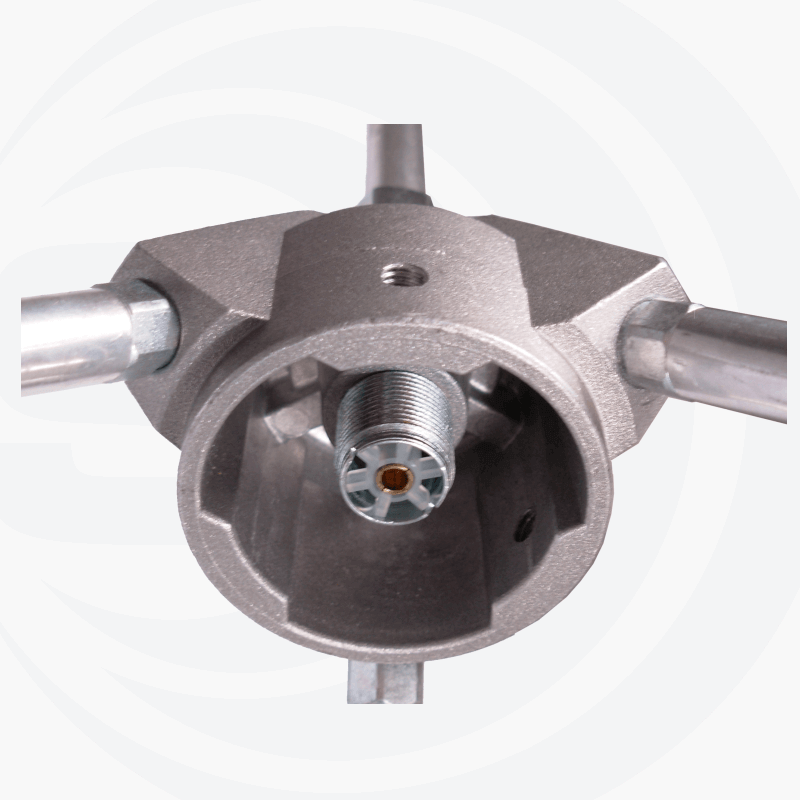

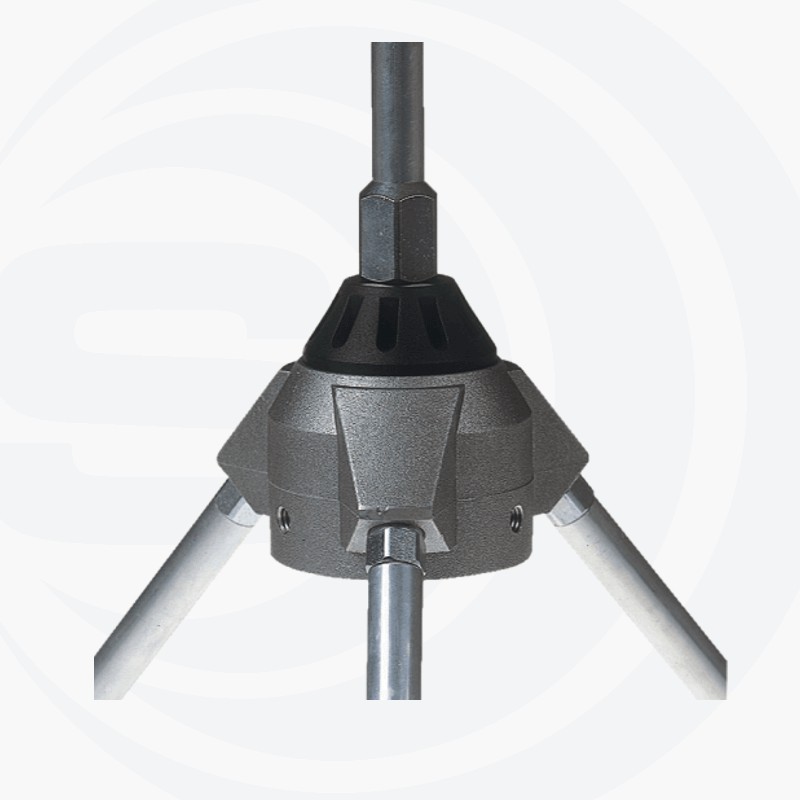

Very Popular Base Station Antenna tunable from 26.5 to 30Mhz. It's made of anti-corodal aluminium tube and supplied with a strong die cast base and a plastic arms bracket to reinforce the radials. It's easy to tune at the desired working frequency.

Electrical Data

Type:	1/4 λ ground plane
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	26.5 - 30 MHz Tunable
Systems:	10m-CB
Bandwidth:	≥ 2.5 MHz @ SWR ≤ 2
Gain:	0 dBd – 2.15 dBi
Maximum power:	1000 Watts (CW) continuous 3000 Watts (CW) short time
Grounding protection:	DC-Ground
Connector:	UHF-female (SO-239)

Mechanical Data

Materials:	Aluminium, Chromed brass, Zamak
Height (approx):	5040 mm / 16.54 ft
Weight (approx):	1230 gr / 2.71 lb
Mounting type:	On-mast

_{Product manual}
_{Optional Suitable Accessories:}_{Sirio FT-2 Bracket}
