Product Information
Product Number: 2300520.80
Model: SB 3U

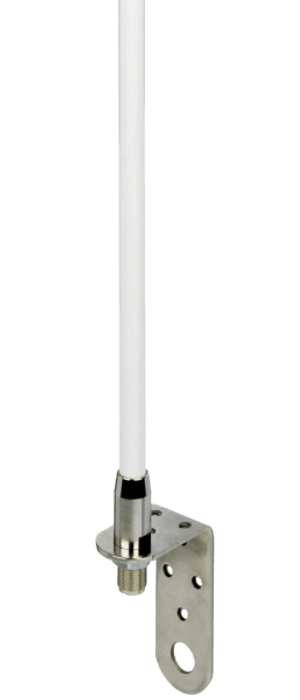

- VHF Marine antenna
- Designed to work without Ground Plane
Electrical Data
| Type: |
3/4 λ J-Pole |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
154 - 162.6 MHz No Tuning Required |
| Gain: |
0 dBd - 2.15 dBi |
| Systems: |
VHF Marine Band |
| Maximum power |
100 Watts |
| Grounding: |
DC-Ground |

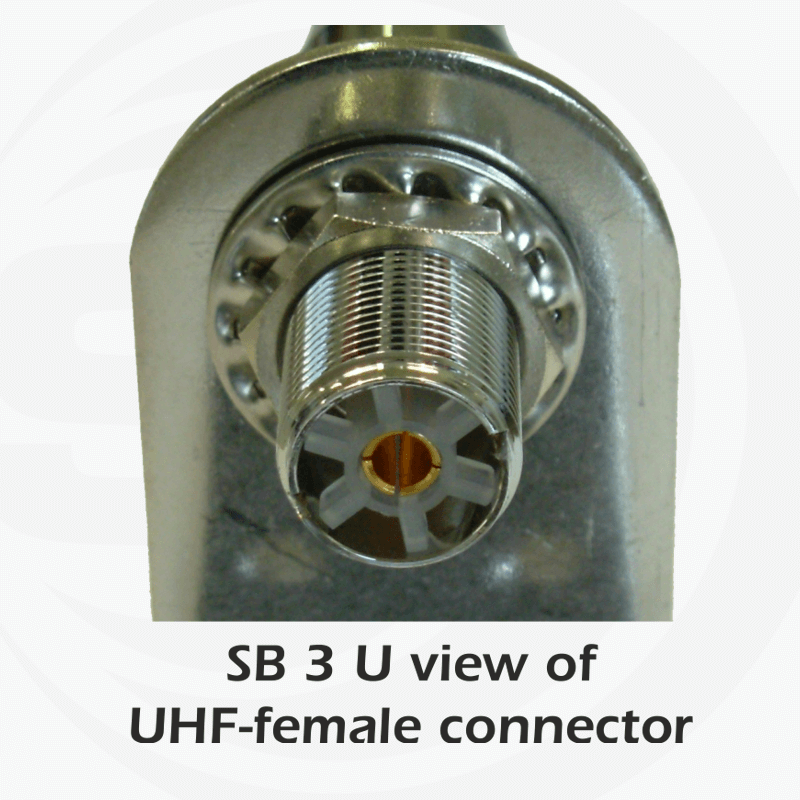

| Connector: |
UHF-Female (SO-239) |
Mechanical Data
| Materials: |
Chromed Brass, Fiberglass, Nylon |
| Height (approx): |
1465 mm / 4.81 ft |
| Weight (approx): |
300 gr / 0.66 lb |
| Mounting Type: |
On-Master, On-Wall |
Product manual
|
