Sirio New Tornado 27 27 - 30 Mhz base Antenna

Model: SIR-CBBA-TO27
27-30 Mhz Tunable, High Power Capacity, Strong PC Insulator
Check In-Store availability
$129.00
Description
Reviews
  • Model
  • SIR-CBBA-TO27

Description:

Product Information

Product Number: 2100501.00
Model: NEW TORNADO

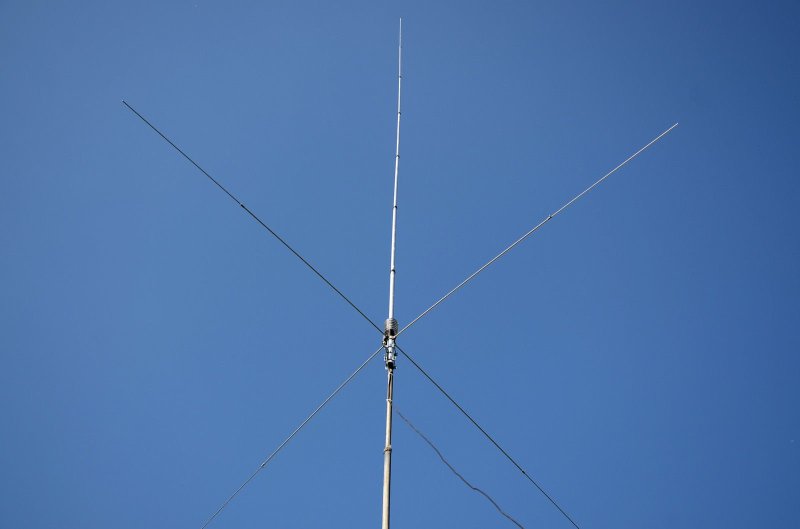

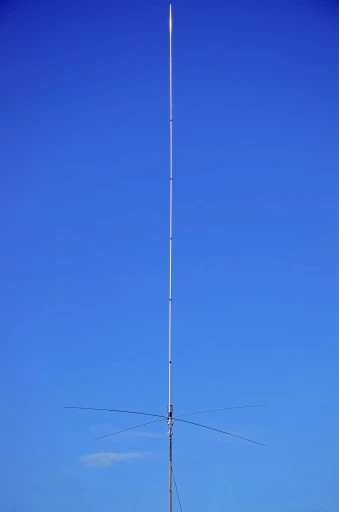

This high quality base station antenna for the very popular 10M-HAM band is a great addition to the Sirio range.

5/8 Wavelength antenna for base station working on 10M-HAM tunable by means of the enclosed tuning diagram. This series are made of anti-corodal aluminium tubes. Strong and easy to install, it allows very good links.

  • Base station antenna, Omnidirectional

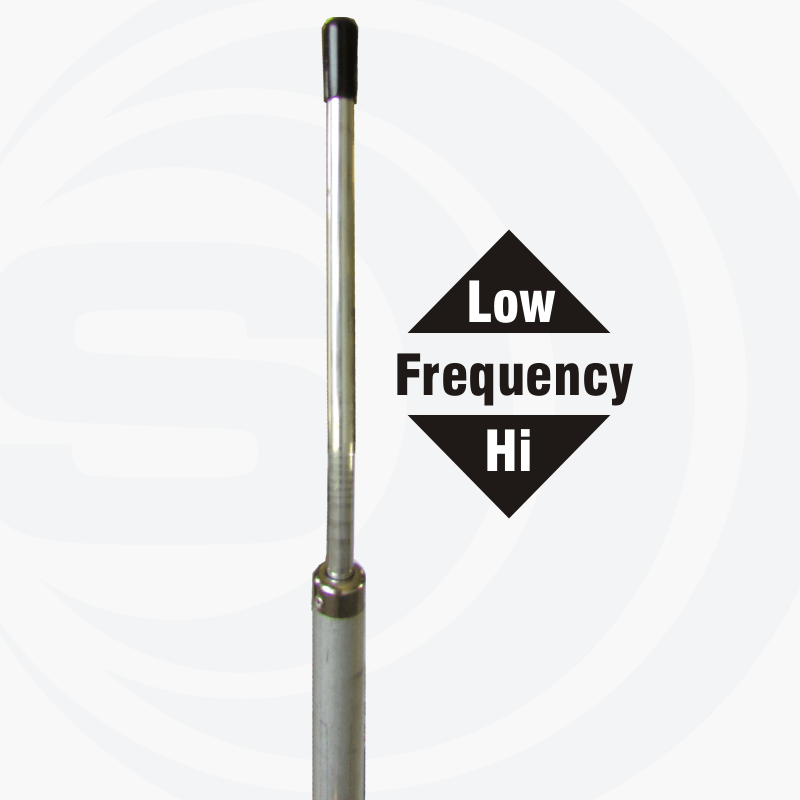

  • Tunable by acting on the whip length

  • Low radiation angle for excellent DX

  • Made of aluminium alloy 6063 T-83

Electrical Data

Type: 5/8 λ ground plane
Radiation: Omnidirectional
Polarization: Linear Vertical
Frequency range: 27 - 30 Mhz Tunable
Systems: 10m-CB
Gain: 1.2 dBd – 3.35 dBi
≥ 1.3MHz @ SWR ≤ 2
Maximum power: 1000 Watts (CW) Continuous
3000 Watts (CW) Short time
Grounding: DC-Ground
Connector: U-Female  (SO-239)

Mechanical Data

Materials: Aluminium, Steel, Nylon
Height (approx): 7230 mm / 23.72 ft
Weight (approx): 2900 gr / 6.39 lb
Mounting type: On-Mast

Product manual
