Product Information
Product Number: 2331420.83

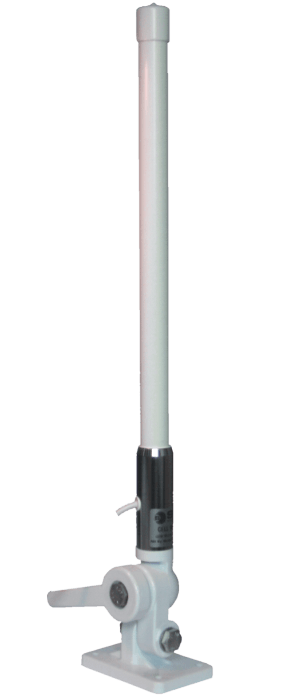

Model: CELL 918 Mariner
-
Marine antenna, Dual-band
-
Unity-gain, Omnidirectional
-
Perfect protection against the worst weather conditions
-
Protection from static discharges DC-Ground
-
Chrome-plated brass ferrule
-
180° inclination and adjustable whip
-
Supplied with white coaxial cable RG-58 C/U directly connected
-
For GSM 900 & 1800,PCN,DECT and UMTS systems
Dual-band marine antenna conceived for CELLULAR systems working on GSM 900 & 1800 MHz, DCS 1.9, DECT and UMTS. All metallic components are made of chromium plated brass and stainless steel to improve its strength.
It's inserted in a glass fibre tube for a perfect protection against the worst sea climates. It can be supplied with the following fixing mounts: “M-3” adjustable mount of chromium plated brass, “M-8” adjustable mount of white nylon and “M-10”adjustable mount of chromed plated brass.
Electrical Data
| Type: |
1/2 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear Vertical |
| Frequency range: |
880-960 MHz & 1700-2170 MHz No tuning required |
| Gain: |
0 dBd - 2.15 dBi |
| Systems: |
GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, DECT |
| Maximum power |
20 Watts |
| Grounding: |
DC-Ground |
| Cable Length/type: |
5m (16.4 ft)/ White RG58 |
| Connector: |
SMA-male |
Mechanical Data
| Materials: |
Chromed Brass, Fiberglass, Nylon |
| Height (approx): |
420 mm / 1.38 ft |
| Weight (approx): |
470 gr / 1.04 lb |
| Mounting Type: |
Thru-Holes |
